Single edge brush belt sanding machine

Single edge brush belt sanding machine BBES-4U+84 28 73036536Free ordering and advice

product detail

INFORMATION PRODUCT

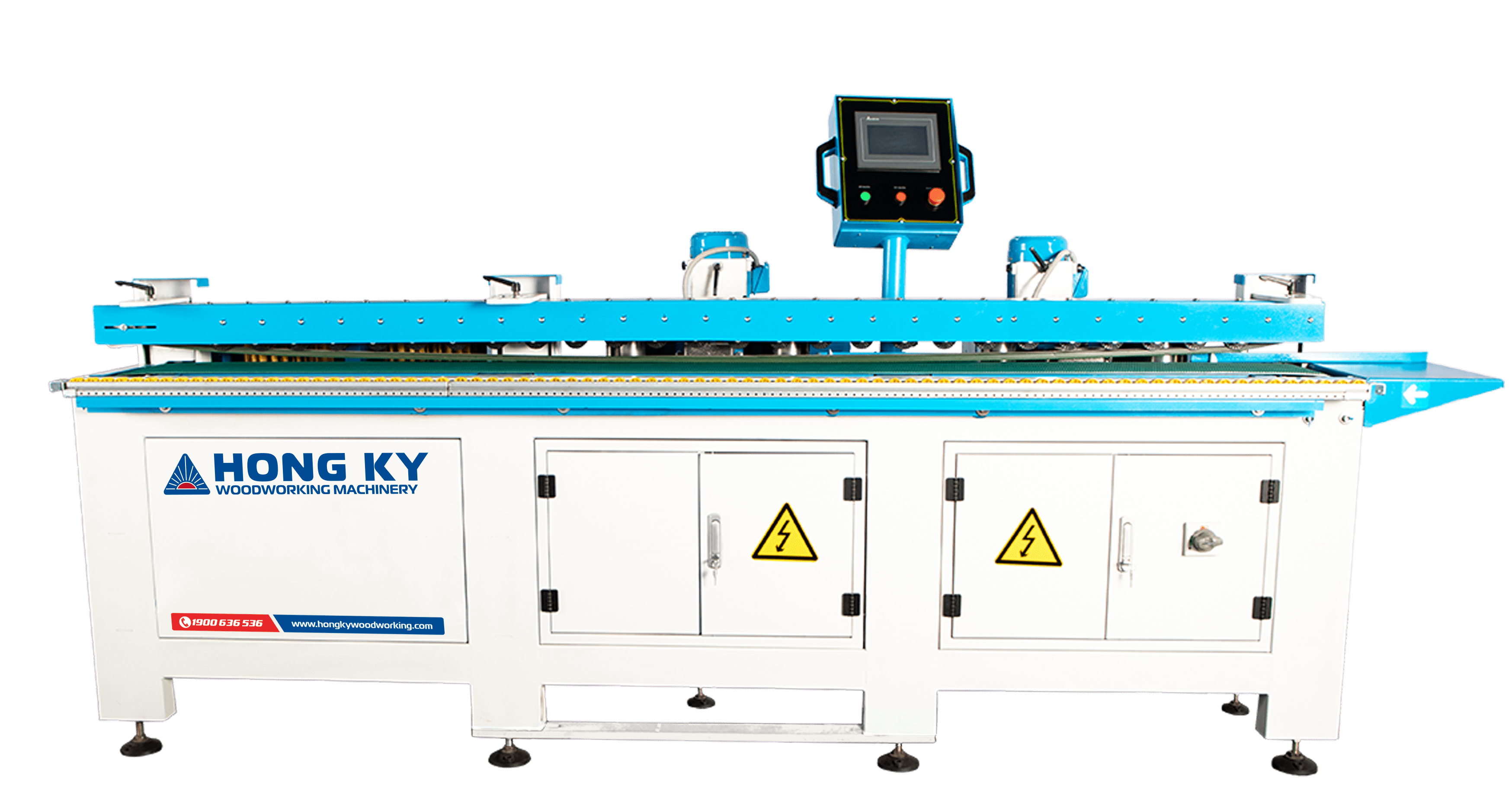

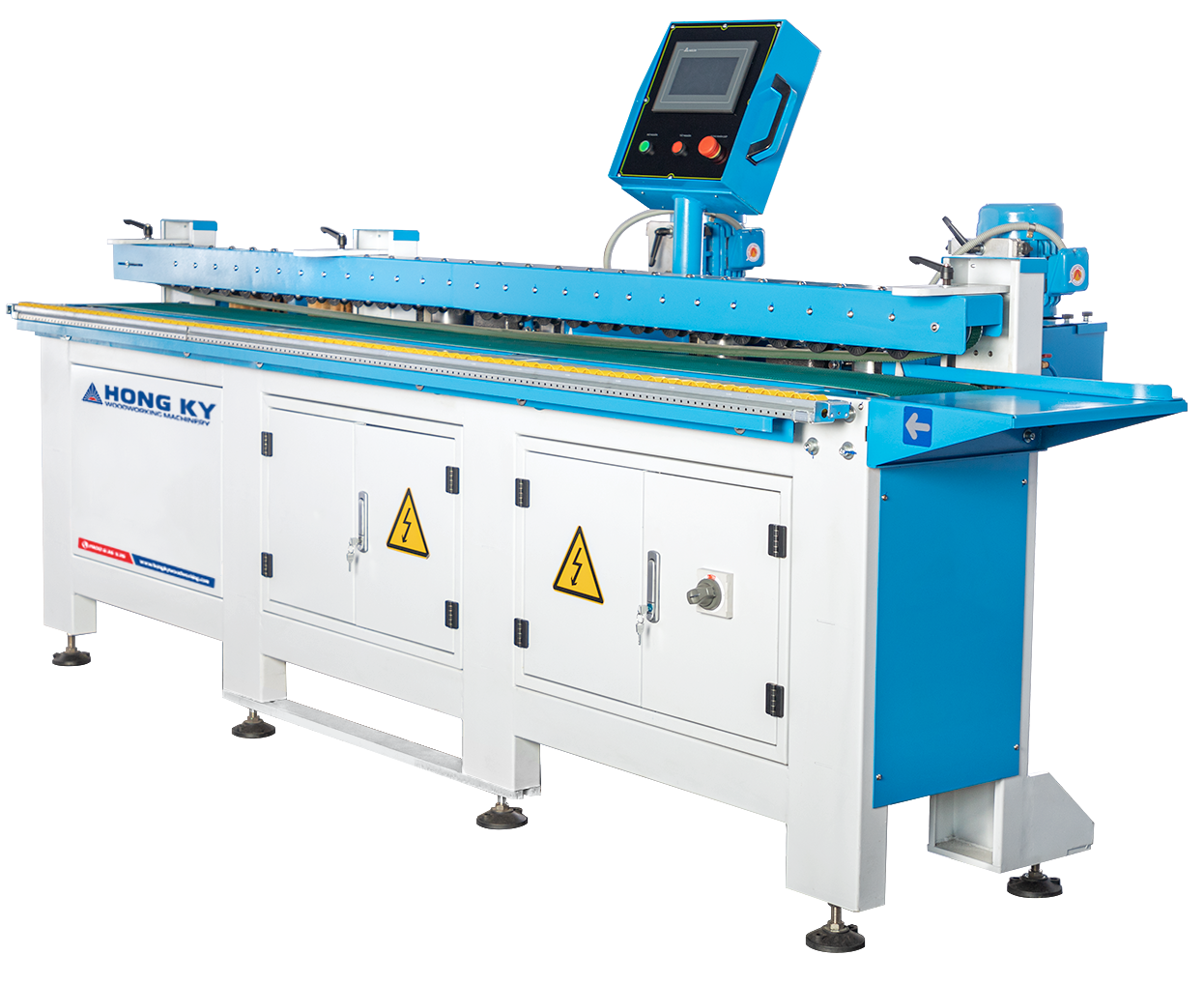

Single edge brush belt sanding machine BBES-4U specializes in single edge sanding, brushing sanding a variety of workpieces but the kitchen cabinet door is the most appropriately.

Appropriate in sanding before and after painting.

The machine is composed of 2 main parts in sanding: belt sanding and brush sanding

The belt sanding has the effect of calibrating and flattening the edge of wood workpieces.
The brush sanding helps to remove hairs/fibers, making it smooth on the edge.

The product is designed according to European standards, bringing diverse of benefits to the business:

Easy to operate based on the intelligent and modern design.

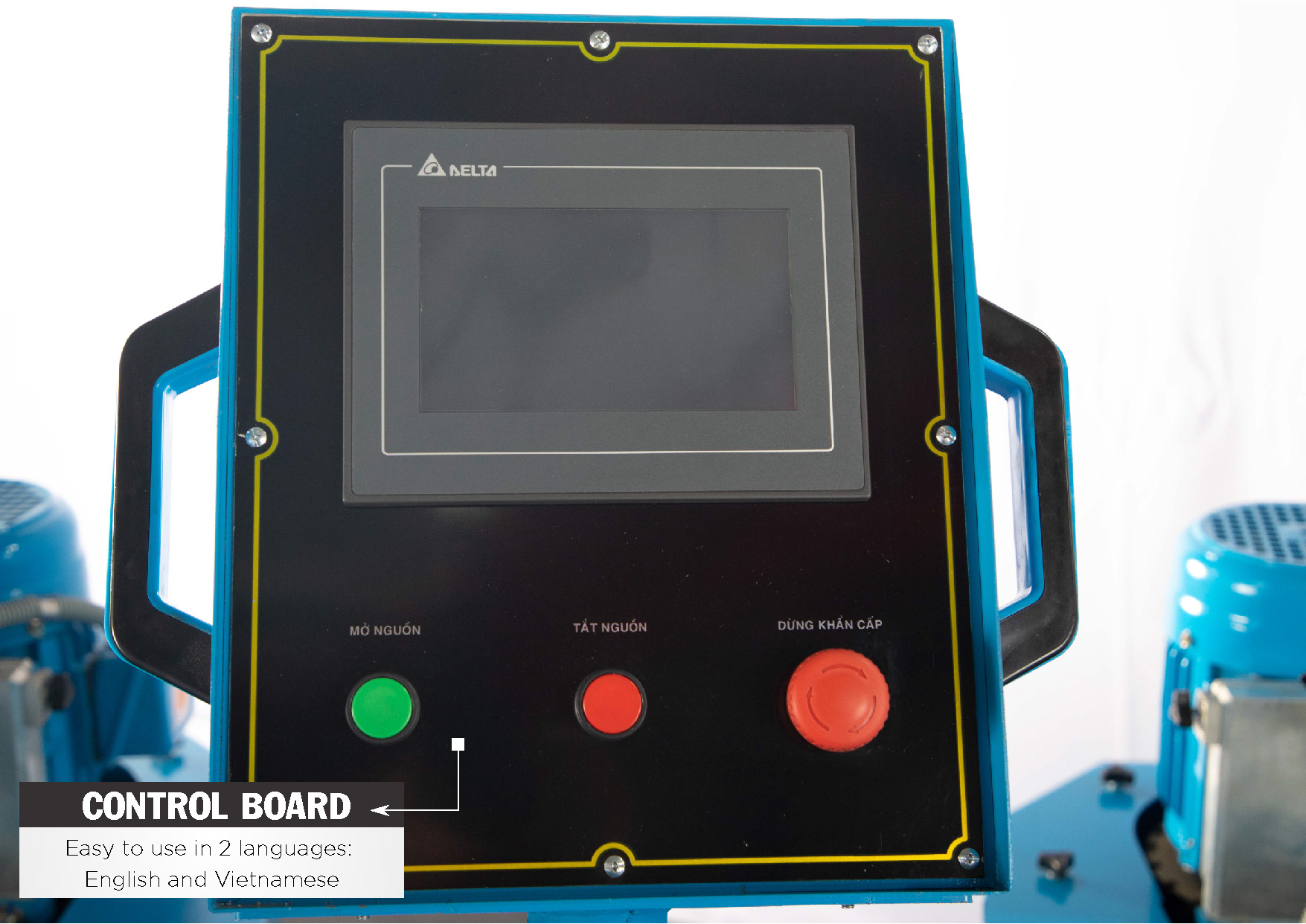

The display screen comes in 2 languages English and Vietnamese to make it easy for workers to operating
Able to customize conveyor, belt and brush rotation speed.
Saving time and increasing the efficiency in production
Optimizing the workspace of factory

Those are a variety of outstanding features which are composed into a great solution to help businesses improve the quality of sanding kitchen cabinet doors, along with saving costs and working duration

Contact hotline 1900 636 536 for more information

Specification:

Specification	Value
Timber species	Softwood / Hardwood
Operating voltage	3 phase – 380V ± 5% / 50Hz
Working thickness	10 – 40 mm (Option: 10 – 60 mm)
Minimum working length	150 mm
Working width	150 – 2000 mm
Conveyor speed	8 – 25 m/min
Working table height	880 – 990 mm
Length of conveyor	2800 mm
Sanding brush speed	140 – 420 rpm
Sanding belt speed	400 – 1200 m/min
Sanding belt specifications (H x P)	80 x 2060 mm
Dust extraction hood	3 x Ø90 mm
Air speed	28 m/s
Air volume / Dust extraction	1924 m³/h
Machine size (L x W x H)	3500 x 1500 x 1600 mm
Machine net weight	840 kg
Total power	3.7 kW
